Vintage Stratocaster

Vintage Stratocaster

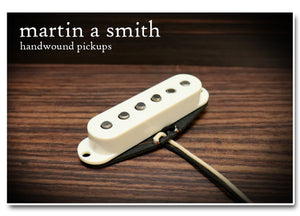

A classic vintage style Stratocaster pickup based on the original 1954 specs wound with 42awg formvar for a chimey vintage tone and that signature Strat "quack" in positions 2 and 4.

Wound to a vintage low output in the neck and middle at approximately 5.6k and 5.8k, while the bridge is 6.2k and all three positions use bevelled A3 magnets in a 1954 stagger, which has the shorter G magnet compared to the taller G that was introduced in 1955 and is the basis of most "vintage" staggers .

Available with white, black or parchment covers.


As standard these pickups are not wax potted to achieve a more open and detailed sound.

 DCR Neck: 5.6k, Middle: 5.8k, Bridge: 6.2k
Inductance Neck: 2.6H, Middle: 2.8H, Bridge: 3.4H
Wire 42awg Heavy Formvar
Magnets AlNiCo 3

  • $ 120.00 AUD
