Telecaster '72 Custom Set

Telecaster '72 Custom Set

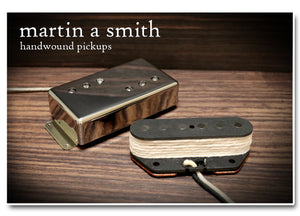

If you have a Telecaster '72 Custom Reissue, I have you covered with a set that includes a Telecaster bridge pickup designed to compliment my Wide Range Humbucker in the neck.

In 1972 Fender introduced their take on the humbucker, a singularly unique design from Seth Lover, the inventor of the original "humbucking" pickup. Known for their clarity and top-end sparkle, they went out of production in 1979, until Fender reissued them in 1983 with a different design to the originals. These modern versions are a standard humbucker in a larger case, and don't display any of the characteristics that made the originals so unique and sought after.

Rather than try to make a direct copy of the original 70s Wide Range Humbucker, I've taken the basic design and made a couple of tweaks to produce my own take on it.

I use custom-made larger bobbins just like the originals, which allows me to use the correct 42awg wire, and a custom-made ferrous reflector plate to increase the inductance of the pickup and shape the tone like the originals.

As far as I can tell, no-one produces threaded CuNiFe rod magnets suitable for pickups anymore, so I offer the choice of individual AlNiCo rod magnets, or threaded FeCrCo magents if you want the original "screw" look for each pole piece, rather than the bar magnet and steel pole-pieces of the reissues - AlNiCo/FeCrCo 2 in the bridge position and AlNiCo/FeCrCo 5 in the neck.

The reason for using FeCrCo for the threaded pole-piece option is that AlNiCo is too brittle to be threaded, so is impossible to machine into a threaded pole format, and as FeCrCo has extremely similar properties to AlNiCo it is an excellent alternative. Tonally, FeCrCo in the threaded rod format has just a touch more high-mid focus than AlNiCo.

When using the fixed AlNiCo rod magnets, I set the visible pole-pieces with my modern take on the classic single-coil vintage stagger for better balance across the strings on each pickup.

The neck Wide Range Humbucker is wound to approximately 10.5k, while the bridge pickup is wound with 43awg wire to approximately 11k to better match the output of the neck position. It is fitted with AlNiCo 3 rod magnets to create a clear, balanced sound and retain that classic Tele twang.

Available in two cover options: "spaghetti-style" signature logo, or plain covers, and includes a set of 1Meg & 250k CTS pots and PIO caps, mounting screws and springs.


  • $ 280.00 AUD
